Kutheni le nto iValve yeButterfly eyi-Triple Offset iluKhetho olugqibeleleyo lwezicelo eziSebenza ngokuPhezulu kwimizi-mveliso

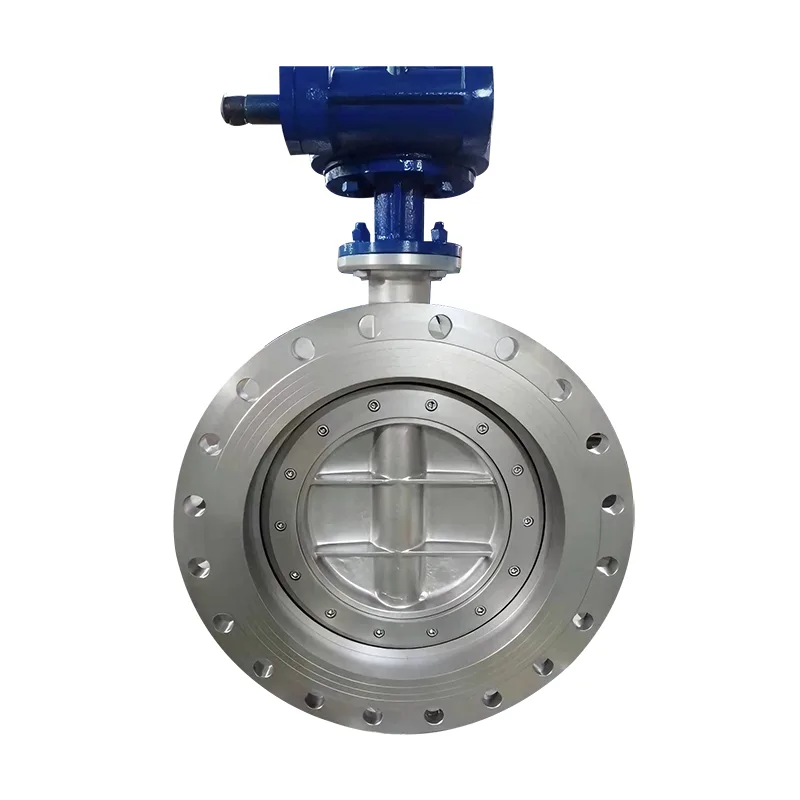

IUhambole Offset Butterfly Valveimele incopho yobunjineli bevalvu yebhabhathane, eyilelwe ukunikezela ngokuvuza kwe-zero, ukutywinwa kwe-bi-directional, kunye nokusebenza okungaqhelekanga phantsi koxinzelelo oluphezulu kunye neemeko zobushushu. Esi sikhokelo sibanzi siphonononga imigaqo yoyilo, iingenelo, izixhobo, usetyenziso lwemizi-mveliso, uthelekiso kunye nezinye iindidi zevalvu, iindlela ezingcono zofakelo, kunye nee-FAQs. Nokuba isetyenziswa kwi-oyile kunye negesi, i-petrochemical, i-LNG, ukuveliswa kwamandla, okanye kumashishini aselwandle, ivalve yebhabhathane ye-triple offset ibonelela ngokuthembeka kunye nokuqina okungenakuthelekiswa nanto.

Isiqulatho

• 1. Yintoni iValve yeButterfly ye-Triple Offset?
• 2. Uyilo lwe-Offset lwe-Triple lusebenza njani?
• 3. Izinto eziluncedo eziphambili ngaphezu kwezinye iintlobo zeValve
• 4. I-Triple Offset vs iValve yeButterfly ephindwe kabini
• 5. Izinto eziphathekayo kunye noKhetho loKwakha
• 6. Izicelo zoShishino
• 7. Imigangatho yamazwe ngamazwe kunye neziQinisekiso
• 8. Indlela yokukhetha iValve eLungileyo
• 9. UFakelo kunye noLondolozo lweZenzo ezilungileyo
• 10. Imibuzo Ebuzwa Rhoqo

1. Yintoni iValve yeButterfly ye-Triple Offset?

Ivalve yebhabhathane ye-Triple Offset (ekwaziwa ngokuba yi-triple eccentric butterfly valve) sisivalufa esisebenza ngokuphezulu seshishini elenzelwe ukuvaleka ngci, naphantsi kweemeko zokusebenza ezigqithisileyo. Ngokungafaniyo ne-concentric okanye i-valve ye-offset ephindwe kabini, iqulethe i-geometric offsets ezintathu ezihlukeneyo eziphelisa ukungqubuzana ngexesha lokusebenza kunye nokuqinisekisa ukutywinwa kwesinyithi ukuya kwintsimbi.

Ezi zivalo zisetyenziswa ngokubanzi kumashishini afunazero ukuvuza ukusebenza, ukumelana nobushushu obuphezulu, kunye nobomi benkonzo ende.

2. Uyilo lwe-Offset lwe-Triple lusebenza njani?

Ii-Offsets eziThathu zicacisiwe

Inyathelo lesithathu lolona tshintsho lubalulekileyo. Yenza uyilo oluhlala kwitorque olususa ukukhuhla phakathi kwediski kunye nesitulo, ukwandisa kakhulu ubomi bevalvu.

3. Izinto eziluncedo eziphambili ngaphezu kwezinye iintlobo zeValve

• Ukuvuza okungavuziyo (ukutywinwa kokuqina kweqamza)
• Ukubanakho ukutywina okuphindwe kabini
• Ukumelana nobushushu obuphezulu (ukuya kuthi ga kwi-550 ° C okanye ngaphezulu)
• Uyilo olukhuselekileyo emlilweni
• Ukusebenza kwetorque ephantsi
• Ubomi benkonzo eyandisiweyo
• Icwecwe kwaye ikhaphukhaphu xa kuthelekiswa neevalvu zesango

Ukusetyenziswa koxinzelelo oluphezulu kwimibhobho yeoli neyerhasi, iivalvu zebhabhathane eziphindwe kathathu zihlala zigqwesa isango lendalo kunye neevalvu zeglowubhu kuzo zombini iindleko kunye nogcino olusebenzayo.

4. I-Triple Offset vs iValve yeButterfly ephindwe kabini

Uyilo oluphindwe kathathu lwe-offset lufanelekile kwiindawo zenkonzo ezinzima, okwenza ukuba ibe sisisombululo esithandwayo kwiindawo zokucokisa kunye nezibonelelo ze-LNG.

5. Izinto eziphathekayo kunye noKhetho loKwakha

Ngokuxhomekeke kwiimfuno zesicelo, imathiriyeli inokubandakanya:

• Intsimbi yekhabhoni
• Intsimbi engatyiwa (304/316)
• Duplex steel stainless
• Intsimbi ye-alloy
• I-Inconel okanye iMonel yeemeko ezingqongileyo ezigqithisileyo

Izinto zokuhlala zihlala zibandakanya intsimbi eqinileyo okanye i-stellite overlay ukomeleza ukumelana nokunxiba.

6. Izicelo zoShishino

Iivalvu zebhabhathane ezintathu eziqhele ukusetyenziswa apha:

• Imibhobho ye-oyile negesi
• Izityalo zePetrochemical
• Izibonelelo zokuvelisa umbane
• iitheminali zeLNG
• Ubunjineli baselwandle
• Amaziko okulungisa imichiza

Kumashishini anobungozi obuphezulu apho ukuvuza kungamkelekanga, ukukhetha umenzi weprimiyamu efanaGongchuangiqinisekisa ukhuseleko, ukuthotyelwa, kunye nokuthembeka kwexesha elide.

7. Imigangatho yamazwe ngamazwe kunye neziQinisekiso

• API 609
• I-ASME B16.34
• I-ISO 15848 (Ukukhutshwa kweMbacu)
• Fire Safe API 607 ​​/ 6FA
• CE & ATEX isatifikethi

8. Ungayikhetha njani iValve yebhabhathane eLungileyo kathathu?

Qwalasela ezi nkalo zilandelayo:

1. Umgangatho woxinzelelo (iKlasi 150–2500)
2. Uluhlu lobushushu obusebenzayo
3. Uhlobo lwemidiya (igesi, umphunga, ikhemikhali, LNG)
4. Qeda umdibaniso (Wafer, Lug, Flanged)
5. Indlela yokwenza (iNcwadana, iPeneumatic, uMbane)

Ukusebenza nomvelisi onamava onje ngeGongchuang kuqinisekisa ukucaciswa kwevalve echanekileyo kwiimfuno zakho zoshishino.

9. UFakelo kunye noLondolozo lweZenzo ezilungileyo

• Qinisekisa ulungelelwaniso olululo lwemibhobho
• Landela imilinganiselo yetorque yeebholithi
• Ukuqhuba uvavanyo loxinzelelo ngaphambi kokugunyaziswa
• Cwangcisa uhlolo lwesiqhelo
• Sebenzisa iinxalenye endaweni ye-OEM

10. Imibuzo Ebuzwa Rhoqo (FAQ)

I-Q1: Kutheni ivalve yebhabhathane kathathu ingcono kwizicelo zobushushu obuphezulu?

Kuba isebenzisa isihlalo sentsimbi ukuya kwintsimbi kunye noyilo oluhlala kwitorque olususa izinto zokutywina ezithambileyo ezisesichengeni somonakalo wobushushu.

I-Q2: Ngaba inokubonelela ngokuvuza kwe-zero?

Ewe, iivalvu zebhabhathane eziyilwe ngokufanelekileyo eziphindwe kathathu zinokufikelela kwimigangatho yokuvuza ye-ANSI Udidi VI.

I-Q3: Ngaba ifanelekile inkonzo ye-cryogenic?

Ewe, ngokukhethwa kwezinto ezifanelekileyo kunye noyilo olwandisiweyo lwebhonethi.

I-Q4: Ngawaphi amashishini azuza kakhulu?

I-oyile kunye negesi, i-petrochemical, i-LNG, kunye namashishini okuvelisa amandla azuza kakhulu.

I-Q5: Ihlala ixesha elingakanani?

Ngokulungiswa okufanelekileyo, iivalvu zebhabhathane eziphindwe kathathu zinokuhlala amashumi eminyaka kwindawo yenkonzo enzima.

Ukuqukumbela: Kutheni ukhetha iValve yebhabhathane kathathu?

IValve yeButterfly ye-Triple Offset sesona sisombululo kumashishini afuna ukuthembeka okuphezulu, ukuvuza kwe-zero, kunye nobomi benkonzo ende. Ijiyometri yayo ephucukileyo, ukutywinwa kwentsimbi ukuya kwintsimbi, kunye nokuthotyelwa kwemigangatho yamazwe ngamazwe kuyenza ibe phezulu kunendlela yoyilo lwevalvu eqhelekileyo.

Ukuba ujonge ivalve yemveliso ehlala ixesha elide, esebenza kakhulu, iGongchuang ibonelela ngeevalvu zebhabhathane eziphindwe kathathu ezilungiselelwe ezona ndawo zifuna kakhulu.
